6-14 MM SCRAP STEEL BAR STRAIGHTENING MACHINE Product Name Steel bar straightening machine   Scope of Straightening Diameter  6-22mm www.waxcon.in Error of Cutting Length of Linear Material±0.5cm   Pulling Speed of Linear Materials48-55m/min Power of Traction Motor11KW-4 Pole Power of Oil Pump Motor5.5KW-4 Pole Weight of the Whole Machine1200kg Appearance Dimension of Host Machine2940×800×1100mm Steel bar straightening machine is mainly applied in straightening and length cutting and applicable to cold rolling Level III Steel Bar, cold rolling plain round bar, and hot rolling coiled bar round steel. The machine is highly automaticand pulling speed is fast. It is continuous working system and is equipped withautomatic counting shutdown device. After the machine straightening, thesurface of linear material shall be free from scratch. The strength loss issmall and straightness accuracy is good. At the same time, the machine is easyto operate, blanking process is sa

Automatic Wire Straightener and Cutter Machine/ Wire Straightener Machine Basic Info Model NO. YGTQ4-10/YGTQ4-12/YGTQ5-14/YGTQ6-16 Warranty 12 Months Customized Customized Condition New Name Automatic Wire Straightener and Cutter Machine Cutting Length 300-9500mm Cutting Diameter Round Bar(4-18mm), Deformed Bar(4-16mm) System CNC Color Yellow, Red, Green(or Customized) Straighten Speed 35-80m/Min Straighten Motor 5.5-15kw Cutting Motor 4-5.5kw Weight 260-1500kg Specification L(1300-4000)*W(550-650)*H(750-1300) HS Code 8462211000 Introduction: Automatic rebarstraightening cutting machine is used to straightening galvanized wire orrebar,and then cut it into the needed length. It can do a prepare work for thewire mesh welding machine.So it is widely accepted to the factory who isdealing wire wires and wire mesh. Also widely used in construction area.Features of Automatic Wire Straightener and Cutter Machine:1. Ad

Foundation Bolt Bending Machine Basic Info Model NO. GW46 Type Roller-Bending Machine Machine Type Steel Bar Bending Machine Motor Power 4kw Voltage 220V-440V Working Speed 1440r/Min Round Bar Bending Diameter 40mm Deformed Steel Bar Bending Diameter 32mm Size 950 X 980 X 820 mm Weight 360kg Key Word Rebar Bending Machine Working Apeed 5-10r/Min Specification 950*980*820 mm HS Code 8462 Advantages                                                                                                   ♥   The machine is able to bend s flat steel, square steel and angle steel, round bar, rod, rebar. ♥  The extal large 6-50mm bending diameter can meet the requirements of various construction project. ♥   Easy operation, Convenient moving and competitive price.  Application                                                                                                     This machine is widely used in road,bri

Steel Bar Bending Machine Enclosed Gearbox Lubrication, Low Noise Model: GW-50 use of rebar bending machine:   Rebar bending machine, steel bar bender, steel bar bending machine is an equipment for bending thread steel bar, smoothly steel bar,  flat steel, square steel and angle steel. Rebar bending machine is able to bend steel bar with diameter 6-50 mm into your require and it is widely used in building, bridge, tunnel, high-speed railway construction projects.       Product feature:   1.Enhanced machine rack, small volume, compact structure, solid and reliable. 2.Good lubricating property, adopt anclosed gear box, use the gear splashing to realize lubrication. It could be continuous work two months after adding 8kg gear oil. 3.Less function loss because of the lubrication improvement. The gear section adopts rolling bearing, less resistance. Compared with same type cutting machine, load power canbe reduced by one third. 4.Using high rigid cutting head, connectin

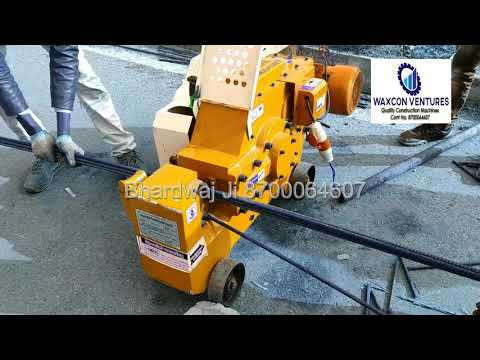

Bar Cutting Machine GQ-45A or TMT Bar Cutter Our Bar Cutting Machine adopts Gears, Shafts, Connection ROD and Blades made of high- quality alloyed steel with required heat treatment (quenching/tempering/high frequency) and 12mm thick external case to ensure reliable performances also under heavy loads and long working life. Connection ROD has high hardness degree on attaching part with the blades, its internal side is made of tin-bronze to avoid abrasions while touching the crankshaft. thick and durable Blades to ensure accurate cutting with all kinds of steel bar(square blade or moon-shape blade option with press spring) Specification Mechanical Cutting GQ 45A Diameter of bars in MM 36 32 25 20 16 12 10 8 6 No of round bars of 45kg/mm 2 1 1 2 2 3 5 6 7 8 No of TMT bars of 65kg/ mm 2 - 1

TMT Bar Bending Machine 1.Production Description: 1). The Rebar Bending machine can preset angle locks for repeating the same angle to bend. 2). The two slide-type angle selectors can be set to accurately bend any angle from 0-180 degrees. 3). Two standard foot pedal control switch for hands-free bending. 4). Rebar Bending machine is of Stable performance. 5). High bending accuracy and efficiency. 6). Emergency stop, safe and convenient. 2.Technical Parameter: Model   WV-GW-40A Voltage   220/440V Power   3000w Dimension   600*580*470mm Weight   310kg Max   rebar dia.   32mm minimum bending dia.   6mm
